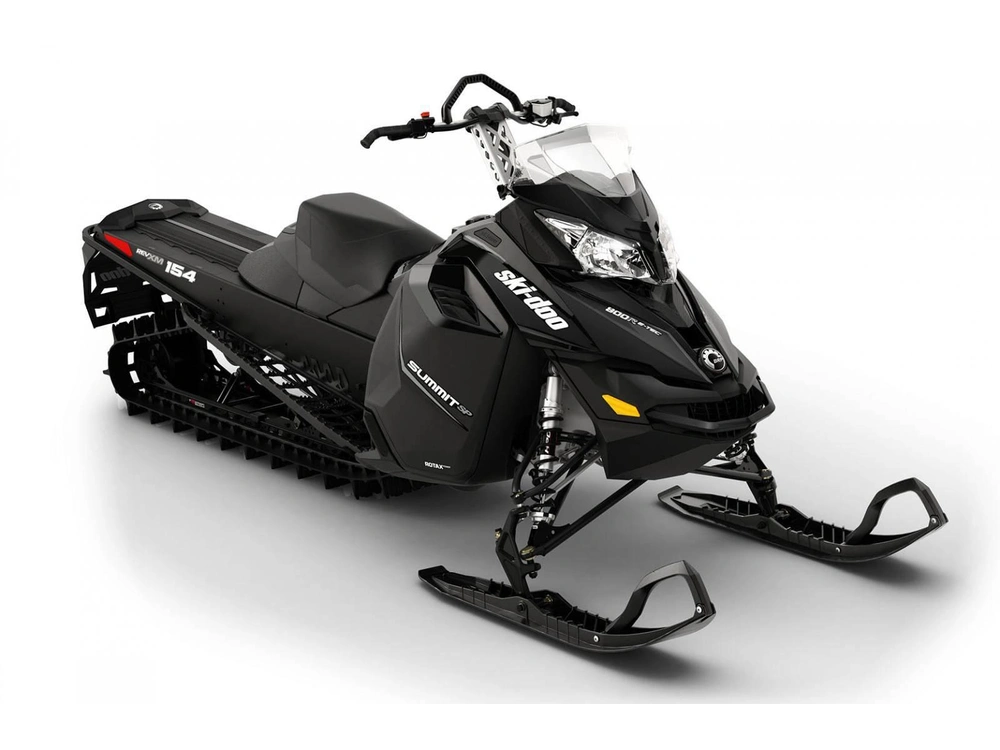

2014 Ski-Doo Summit® SP Rotax® E-TEC® 800R 146"

Package Highlights* REV-XM™ platform
* tMotion™ rear suspension
* Lightweight chromoly front suspension lower A-arms
* Pilot™ DS 2 skis
* Adjustable, narrow ski stance
* Brembo racing brake with braided stainless-steel brake line
* Lightweight, low-profile REV-XM seat with 3 L / 0.8 gal of storage
* RER™ electronic reverse
* Ergonomic, multifunction digital gauge with display and temperature gauge
* 12 in. / 28.5 cm windshield
* Warm glove box with 4 L / 1 gal of storage
* Running boards with large opening
* Stiffer grab handle on handlebar
* S-36 handling package

Extra Highlights* Non-ported 16 x 146/154/163 x 2.5-inch PowderMax 2 track with short rods

Engine* Engine: Rotax E-TEC 800R
* Engine details: Liquid-cooled, 3-D R.A.V.E.
* Cylinders: 2
* Displacement: 799.5cc / 48.8 in.³
* Bore: 82 mm / 3.2 in.
* Stroke: 75.7 mm / 3 in.
* Maximum engine speed: 7900 RPM
* Carburation: Electronic Direct Injection
* Recommended fuel type: Premium unleaded
* Minimum octane: 91
* Fuel tank: 40 liters / 10.6 gallons
* Oil tank capacity: 3.7 liters / 3.9 quarts

Powertrain* Drive clutch type: TRA VII
* Driven clutch type: QRS
* Engagement: 3800 RPM
* Small sprocket number of teeth: 21
* Large sprocket number of teeth: 49
* Drive sprocket number of teeth: 8
* Drive sprocket diameter: 183 mm / 7.2 in.
* Brake system: Brembo racing brake with braided stainless-steel brake line

Dry Weight* 208 kg / 459 lb

Color Choice* Orange / Black, Black

Dimensions* Vehicle overall length: 3226 mm / 127 in.
* Vehicle overall width: 1081 to 1126 mm / 42.6 to 44.3 in.
* Vehicle overall height: 1346 mm / 53 in.
* Ski stance: 907 mm or 950 mm / 35.7 or 37.4 in.
* Ski overall length: 1040 mm / 41 in.
* Track nominal width: 406 mm / 16 in.
* Track nominal length: 3705 mm / 146 in.
* Track profile height: 63.5 mm / 2.5 in. PowderMax 2 (short rods)

Suspension* Front suspension: Dual A-arms
* Front shock: HPG™
* Front suspension max. travel: 200 mm / 8 in.
* Rear suspension: tMotion
* Center shock: HPG
* Rear shock: HPG
* Rear suspension max. travel: 356 mm / 14 in.

Features* Frame: REV-XM
* Skis: Pilot DS 2
* Seating: REV-XM light weight with storage
* Handlebar: Aluminum with J-hooks / Grab handle
* Riser block height: 205 mm / 8 in.
* Electric start: Optional
* Reverse: RER
* Heated throttle lever: Standard
* Heated grips: Standard
* Gauge: Multifunction
* Mirrors: Optional
* Windshield: 285 mm / 12 in.
* Carbide runner: Standard
* Carbide configuration: 102 mm / 4 in. square type at 90°
* Hitch: Optional
