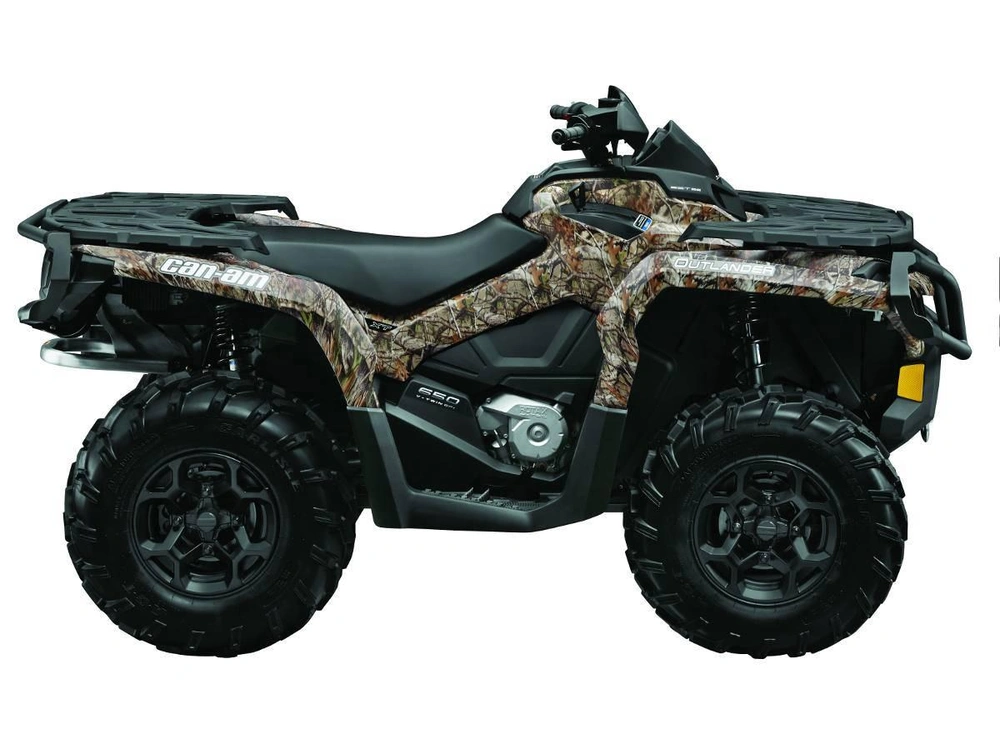

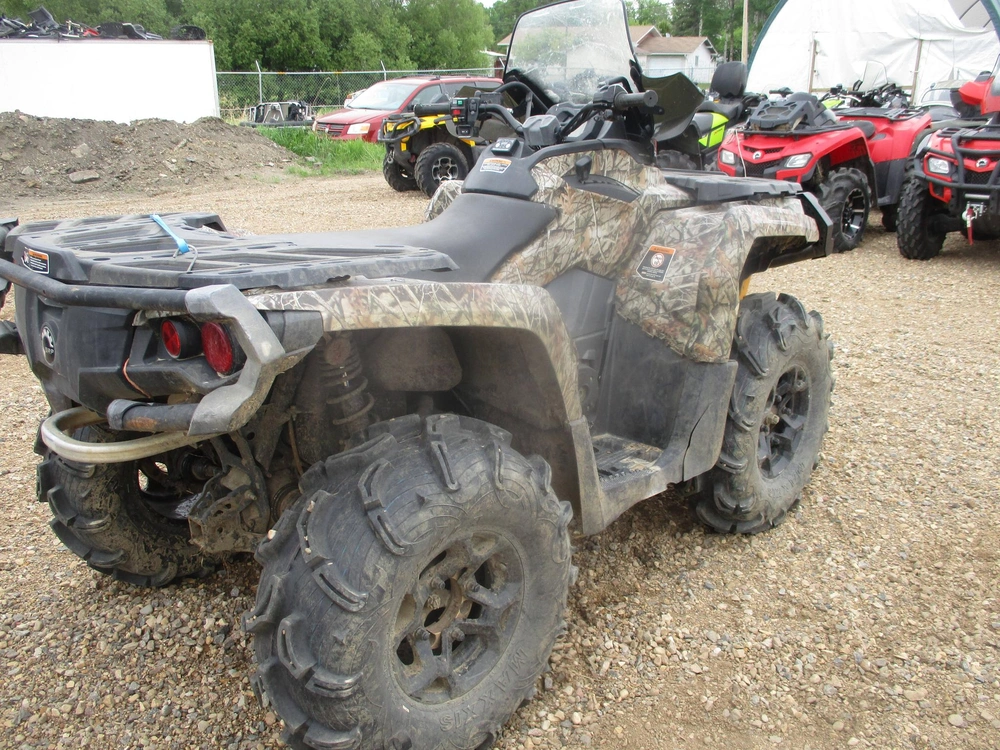

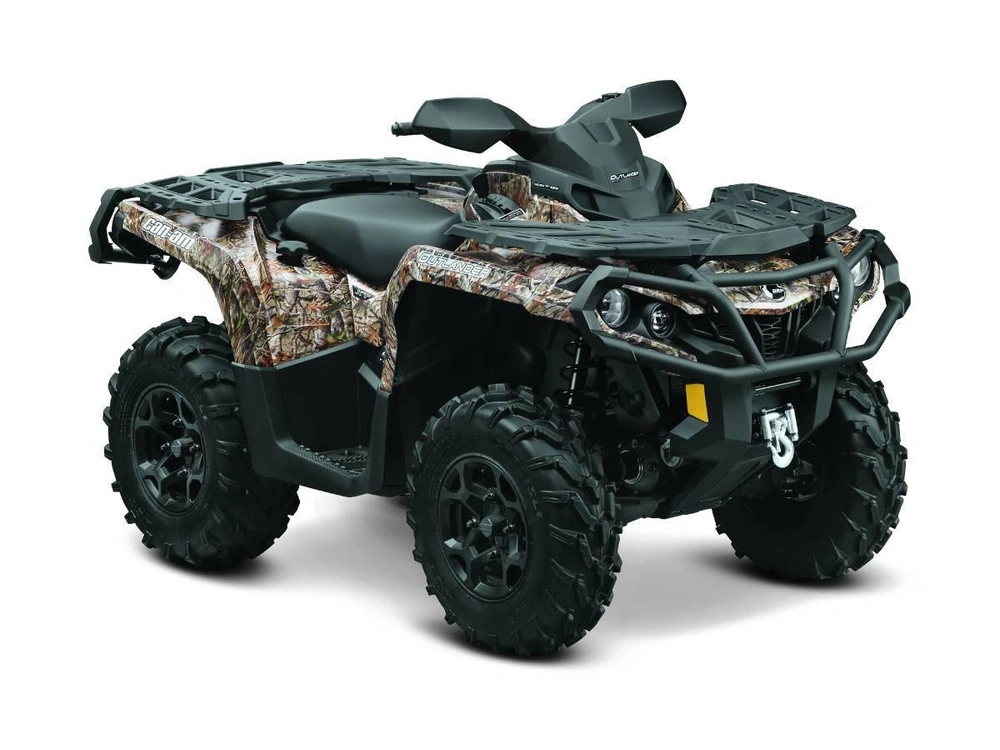

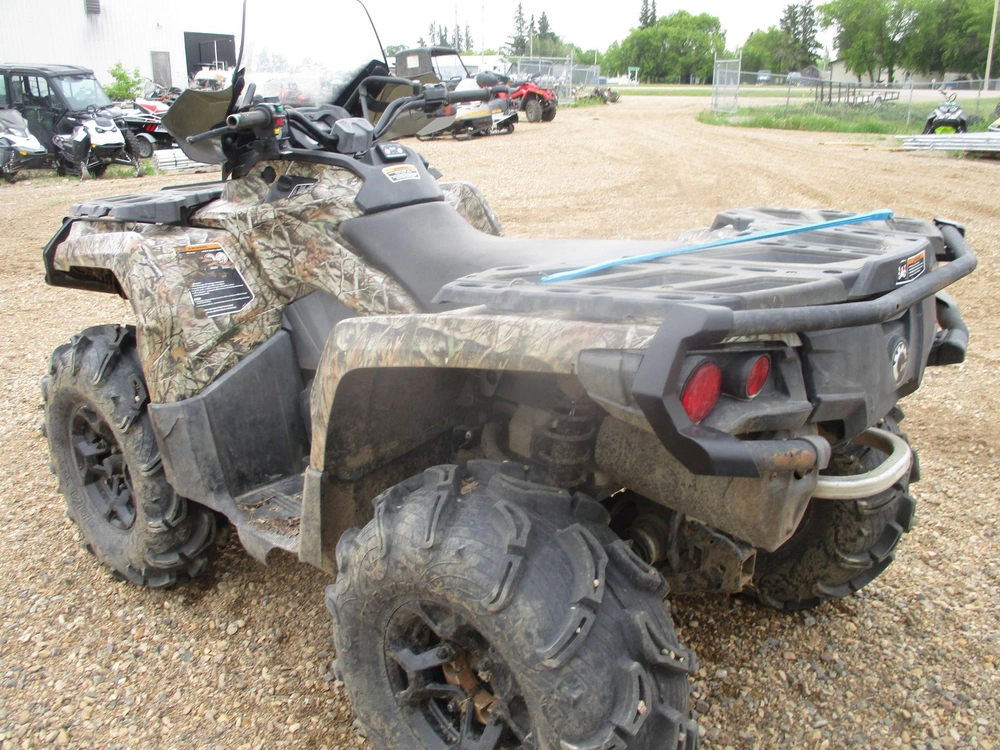

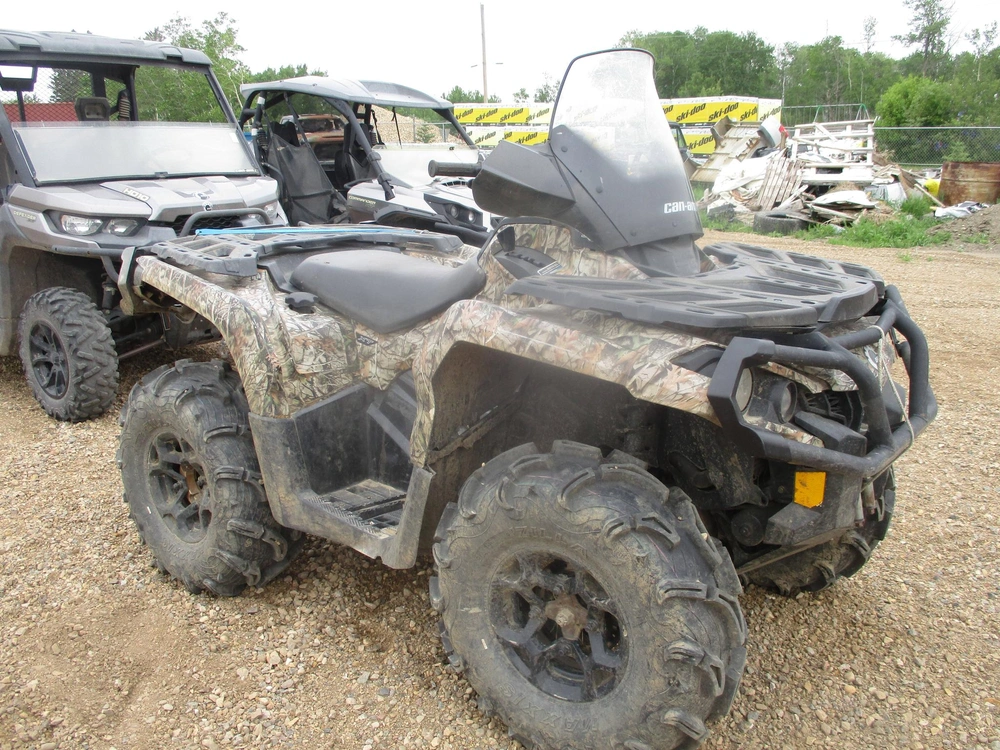

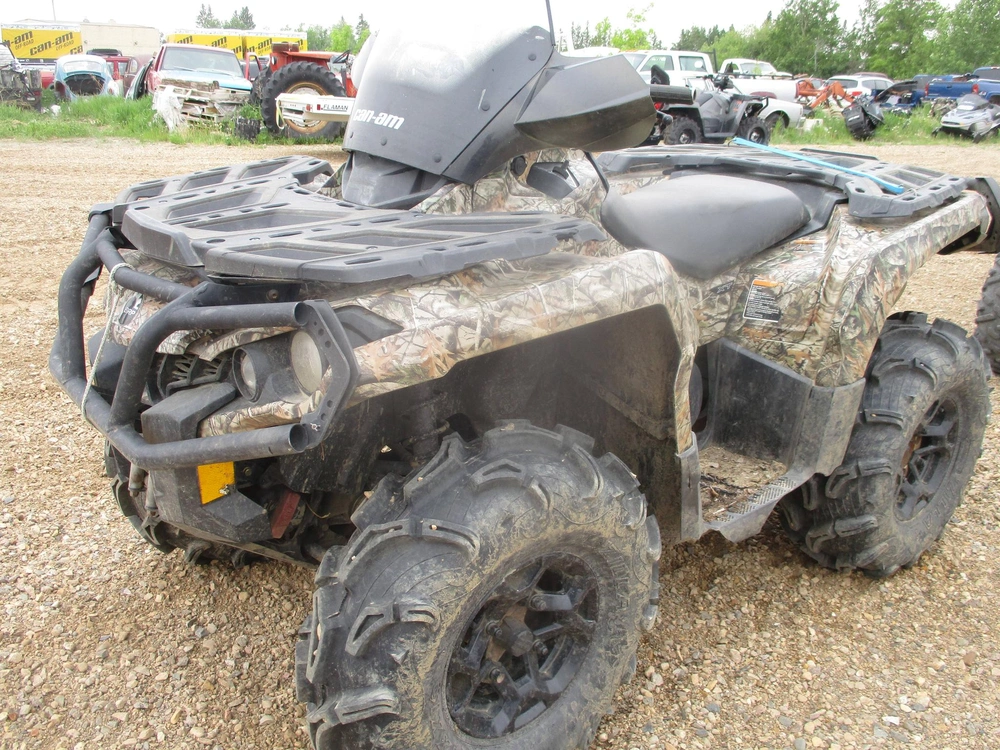

2014 Can-Am Outlander 650 XT™ - Camo

Standard Features* Continuously Variable Transmission (CVT) with engine braking
* Surrounding Spar Technology (SST) G2 frame with Geometric Contact Control
* Double A-arm front suspension with dive-control geometry
* Torsional Trailing arm Independent rear suspension (TTI)
* Visco-Lok auto-locking front differential
* 230-W lighting from headlights
* High-strength, multifunction racks with LinQ™ quick-attach accessory system
* 5.7-gal (21.4 L) water-resistant rear compartment
* Digitally Encoded Security System (D.E.S.S.)
* Multifunction digital gauge

Added Features* Tri-Mode Dynamic Power Steering (DPS)
* Visco-Lok QE
* 12-in. cast-aluminum wheels with machined finish
* 26-in. Carlisle ACT radial tires
* 3,000-lb (1,361 kg) WARN® winch with roller fairlead, wired remote control and integrated remote storage
* Heavy-duty front and rear bumpers
* Handlebar wind deflectors
* 625-W magneto
* Industry-exclusive NEXT G-1 Vista® Camo color option

Engine* Displacement: 649.6 cc
* Type: V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
* Bore & Stroke: 82 x 62 mm
* EFI System / Carburetor: 46 mm Throttle Body, 2 Siemens® VDO injectors
* Starting System: Electric
* Transmission: CVT, sub-transmission with high, low, park, neutral & reverse. Standard engine braking
* Drive Train: Selectable 2WD / 4WD shaft driven with Visco-Lok® QE auto-locking front differential

Chassis* Frame: Surrounding Spar Technology (SST) G2
* Front Suspension Type / Shocks: Double A-arm
* Front Suspension Travel: 9 in. (22.9 cm)
* Rear Suspension Type / Shocks: Torsional Trailing arm independent (TTI)
* Rear Suspension Travel: 9.3 in. (23.6 cm)
* Front Brake: Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
* Rear Brake: Single 214 mm ventilated disc brake with hydraulic twin-piston caliper
* Tires / Front: Carlisle® ACT 26 x 8 x 12 in. (66 x 20.3 x 30.5 cm)
* Tires / Rear: Carlisle® ACT 26 x 10 x 12 in. (66 x 25.4 x 30.5 cm)
* Wheels: Cast-aluminum

Dry Weight* Dry Weight: 726 lb. (329 kg)

Dimensions* L x W x H (in.): 86 x 46 x 44 in.
* L x W x H (cm): 218.4 x 116.8 x 111.8 cm
* Wheelbase: 51 in. (129.5 cm)
* Seat Height: 34.5 in. (87.7 cm)
* Ground Clearance: 11 in. (27.9 cm)
* Towing Capacity: 1,300 lb. (590 kg)
* Front Rack Capacity: 100 lb. (45 kg)
* Rear Rack Capacity: 200 lb. (90 kg)
* Storage: Rear: 5.7 gal. (21.4 L)
* Fuel Capacity: 5.4 gal. (20.5 L)

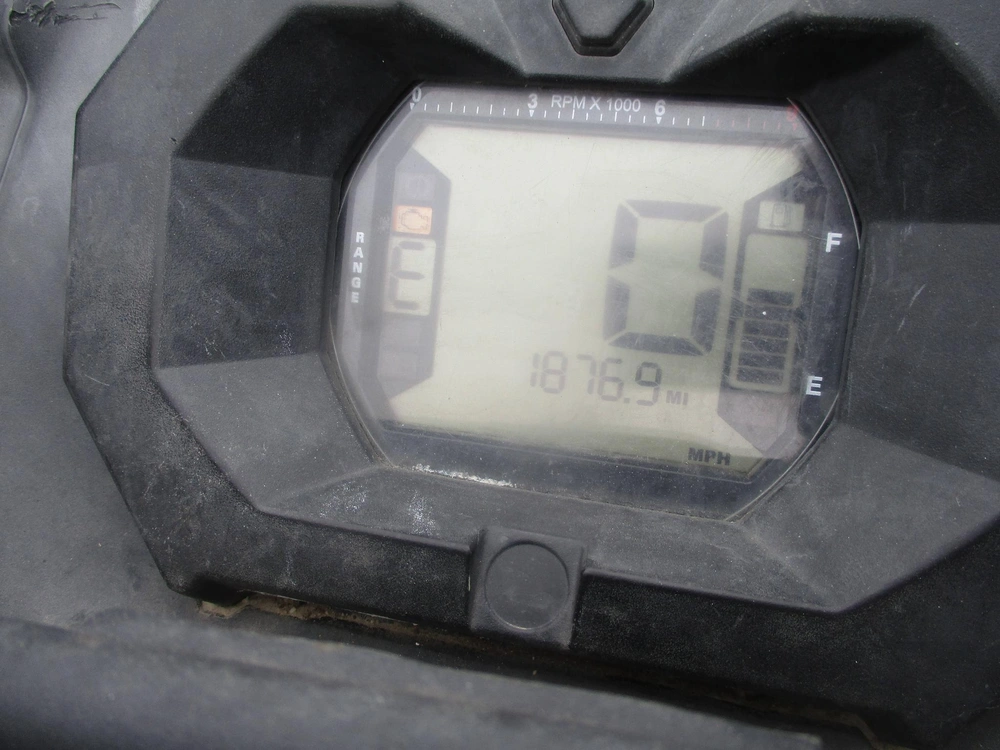

Features* Instrumentation: Multifunction digital LCD gauge: Speedometer, tachometer (bar graph rpm, bottom bar numerical rpm), odometer, trip & hour meters, diagnostic center, gear position, engine hour meter, 4 x 4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off
* Anti-theft System: Digitally Encoded Security System (D.E.S.S.™ )
* Electrical: Prewired for winch
* Lighting: 230-W from twin 60-W projectors and dual 55-W reflectors with tail light / brake light
* DC Outlet: Lighter type in console, standard connector in the back (15-A)

Warranty* Factory: 6 months limited warranty
* Extended: B.E.S.T. available from 12 to 36 months
